Double Roll Former Double Layer Roll Forming Machine Manual Hydraulic Decoiler

Brand Name : HC

Model Number : HC25/20

Certification : ISO

Place of Origin : Botou Hebei China

MOQ : 1set

Price : 15000-39000USD

Payment Terms : 30% deposit by T/T in advance and 70% balance after inspection confirmation before shipment

Supply Ability : 20 sets/month

Delivery Time : 30days

Packaging Details : Main machine is nude,the computer control box is packed by carton box

Contact Now

Double layer roll forming machine

Being counted amongst the most prominent entities of the market, we are engaged in offering a best quality range of Double Layer Roof Forming Machine which finds application in production of false ceiling section profiles, cable trays and DIN rails. The offered roll forming roofing product is valued for easy usage, high strength, corrosion & thermal resistance and easy installation. This Double Layer Roof Forming Machine is manufactured at our state-of-the-art manufacturing unit using high grade raw materials and cutting-edge technology in line with global set industry norms.

Quick Detail:

1. Suitable to process: Color steel plate
2. Width of the plate: 1250mm
3. Rollers: 11/12 rows
4. Dimensions: 7.2*1.55*1.91m
5. Power: 4+4kw
6. Rolling material: high grade 45# steel(plated chrome on surface)
7. Thickness of the plate:0.3-0.6mm
8. Voltage: 380V 50Hz 3phases
9. Material of the cutting plate: Cr12
10. Hydraulic: 40#
11. Processing precision: Within 1.00mm
12. Control system: PLC control

Description:

Double layer roll forming machine Main parameter

No.	Main parameter of Double layer roll forming machine
1	Suitable to process	Color steel plate
2	Width of the plate	1250mm
3	Rollers	upper level :11 rows Down level :12 rows
4	Dimensions	720015501910mm
5	Power	4+4kw
6	Rolling material	high grade 45# steel(plated chrome on surface)
6	Thickness of the plate	0.3-0.6mm
7	Productivity	20m/min
8	Diameter of the roller	Φ70mm
9	Voltage	380V 50Hz 3phases
10	Material of the cutting plate	Cr12
11	Hydraulic	40#
12	Processing precision	Within 1.00mm
13	Control system	PLC control

Equipment components: Man-made uncoiler-roll forming machine-computer control system-hydraulic control system- cutting
Double Roll Former Double Layer Roll Forming Machine Manual Hydraulic Decoiler

Application

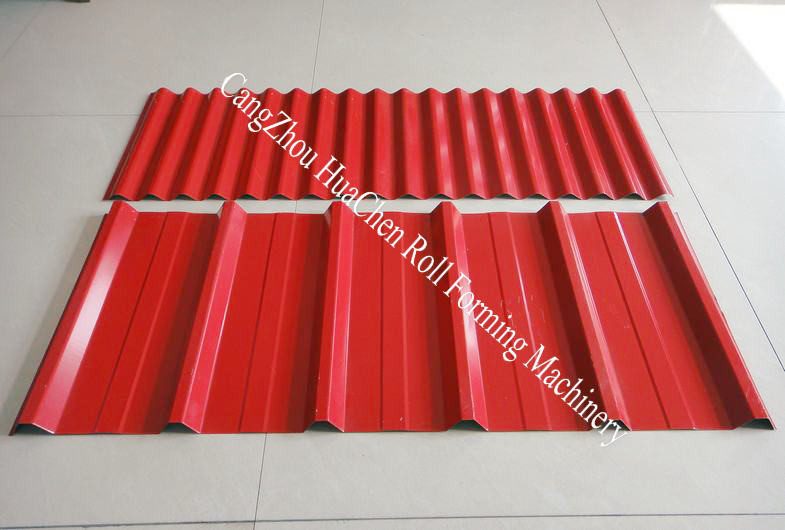

This kind of machine make two types of tile together perfectly, it has reasonable structure, beautiful appearance, with advantage of saving space, easy operate and especially welcomed by the customer with limit area or site

Competitive Advantage

1. CE certification
2. noiseless
3. easy operate
4. high output
5. easy maintain
