Hydraulic Precut Sheet Metal Rolling Equipment With CNC Control System

Product Categories

Cangzhou Huachen Roll Forming Machinery Co., Ltd.

Trust Seal

Verified Supplier

Credit Check

Supplier Assessment

Contact Now

Brand Name : HC

Model Number : HC20

Certification : ISO/CE

Place of Origin : Botou Hebei China

MOQ : 1set

Price : 8000-29000USD

Payment Terms : 30% deposit by T/T in advance and 70% balance after inspection confirmation before shipment

Supply Ability : 20 sets/month

Delivery Time : 30days

Packaging Details : Main machine is nude,the computer control box is packed by carton box

use : wall panel

type : CNC Line

control system : PLC control

cutting mehod : hydraulic cut and Precut

per month : 30 sets

raw material width : 1250mm

Contact Now

Hydraulic Precut Sheet Metal Rolling Equipment With CNC Control System

Description:

Wall Panel Roll Forming Machine Main parameter

No.	Main parameter of Wall Panel Roll Forming Machine
1	Suitable to process	Color steel plate
2	Width of the plate	1250 mm
3	Rollers	14 rows
4	Dimensions	710015501510mm
5	Power	4+4kw
6	Rolling material	45# steel(plated chrome on surface)
6	Thickness of the plate	0.3-0.6mm
7	Productivity	8-10m/min
8	Diameter of the roller	Φ70mm
9	Voltage	380V 50Hz 3phases
10	Material of the cutting plate	Cr12
11	Hydraulic	40#
12	Processing precision	Within 1.00mm
13	Control system	PLC control

Equipment components: Man-made uncoiler-roll forming machine-computer control system-hydraulic control system-cutting

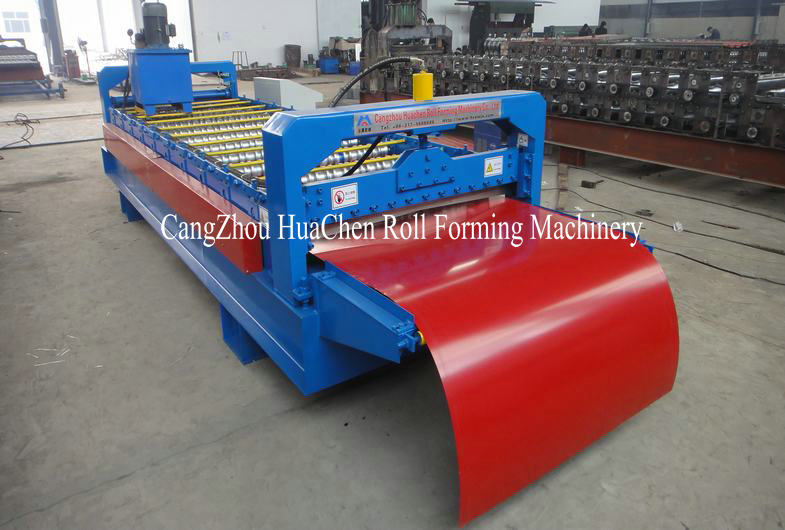

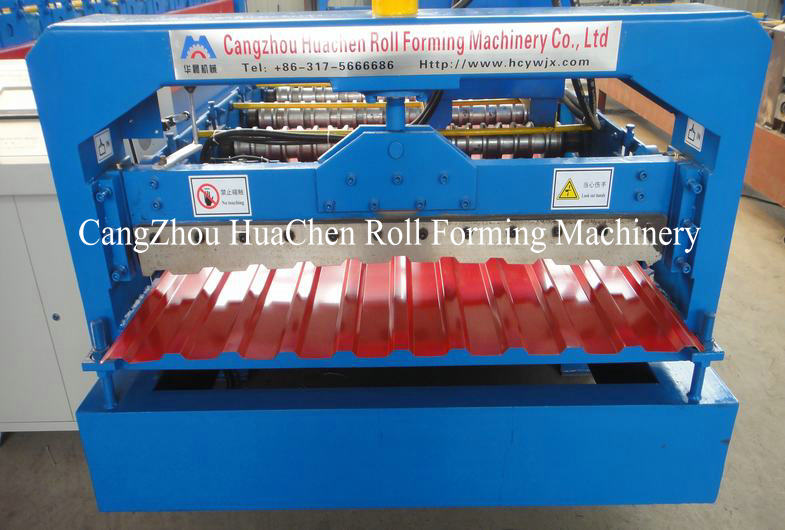

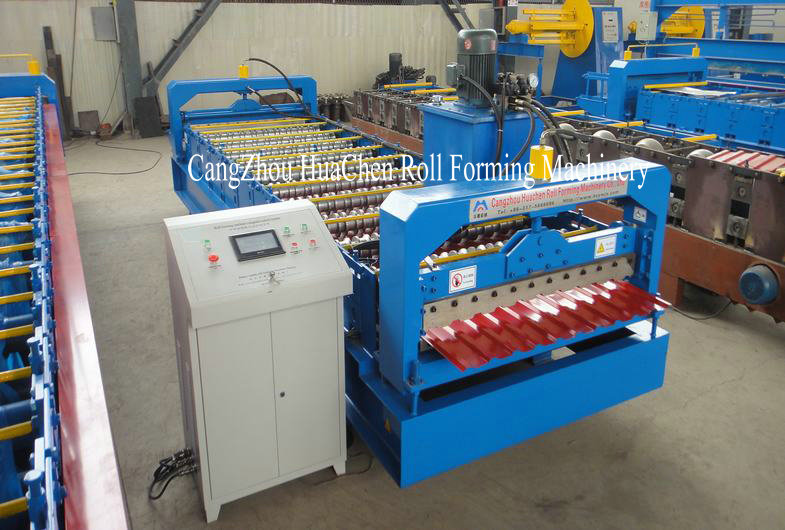

Hydraulic Precut Sheet Metal Rolling Equipment With CNC Control System

Application

This type of sheet can be widely used in plant, house, storage and simple wall. It has advantage of pretty appearance, durable using and so on.

Competitive Advantage

1. ISO/CE certification

2. 20sets/ month

3. high-speed production

4. easy operate, easy maintain

5.One year free warranty
